WCB Gear Pump

Details

Specification

Product introduction:

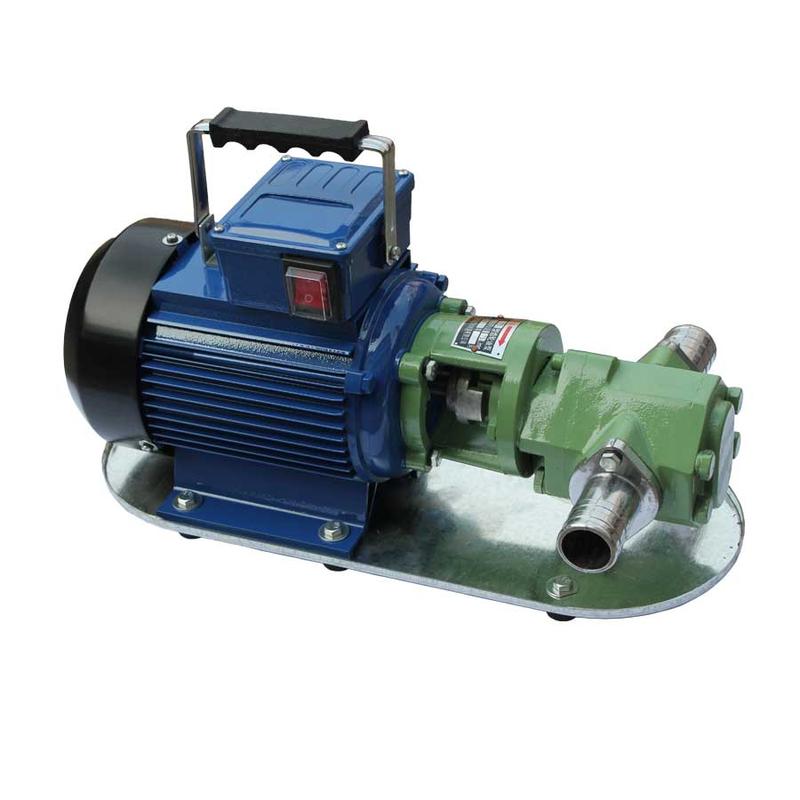

1. Zhejiang Jushi Pump Co.,Ltd manufacture WCB portable gear pump oil transferpump with a portable handle. It works with a pair of gears.

2. The oil transfer pump is with themerits of small volume, easy moving, simple structure, easy to operate, etc.

3. The cast iron pump could be used totransfer lube oil, diesel oil, fuel oil, etc. And by adopting stainless steelmaterial, it also works for medium like non-lubricating oil, beverage and lowcorrosive liquid.

4. The casing & inner parts could bemade of different materials according to the different requirements.

5. The portable gear pump is suitable to be used in oil drum carrier, oil refinery, electricpower plant and substation and oil depot, petrochemical industry, etc.

Product details:

Working Principle:	Double Gears
Main applications:	Oil
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 220/240 V 1phase;50hz/60hz,etc
Max. permissible fluid temperature:	120°C(248°F)
Type of connection:	Thread, Quick couple.
Installation position:	Horizontal
Casing parts material:	Cast iron, Stainless Steel
Shaft seal type:	Rubber seal, Mechanical seal, etc
Free passage:	00 mm
Maximum viscosity:	300C.S.T
Maximum drive rating:	1.1kW(1.5HP)
Maximum caliber:	25mm(1inch)
Maximum discharge-side pressure:	0.3MPa(3bar)
Maximum suction	5m(16.4ft)
Flow rate range:	30-100L/min(7.9-26.4US.GPM)

Performance data:

Model	Material	Caliber	Capacity	Head	Motor power	Voltage
		(mm)	(L/min)	(m)	(W)	(Phase)
WCB-30	Cast iron	20	30	30	370	1ph/3ph
WCB-50		20	50	30	550	1ph/3ph
WCB-75		25	75	30	750	1ph/3ph
WCB-100		25	100	30	1100	1ph/3ph
WCB-30P	Stainless steel	20	30	30	370	1ph/3ph
WCB-50P		20	50	30	550	1ph/3ph
WCB-75P		25	75	30	750	1ph/3ph
