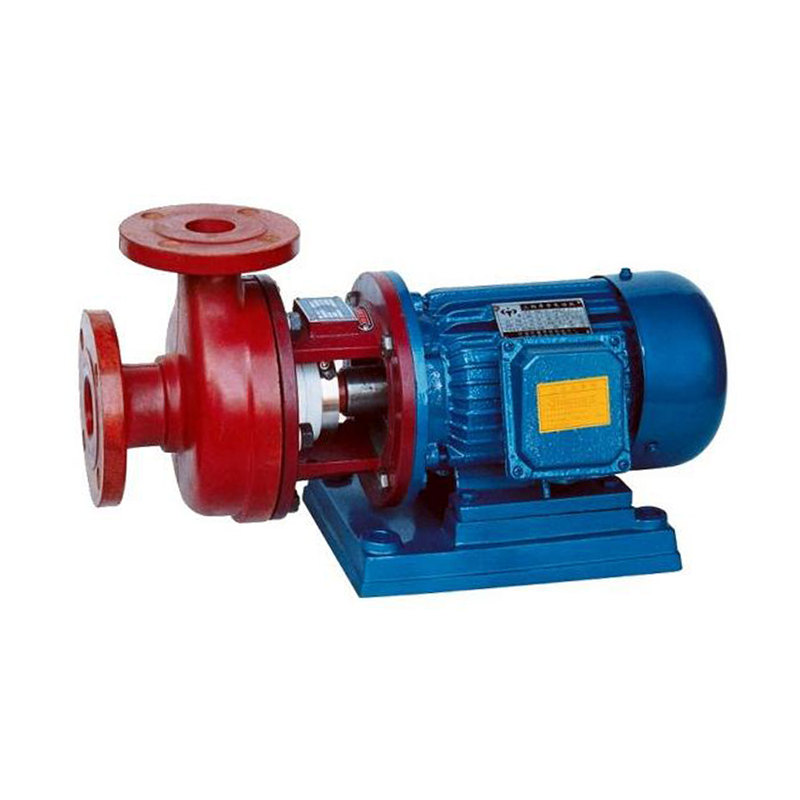

Glass Fiber Pump

Details

Specification

Zhejiang Jushi Pump Co.,Ltd manufacture glass fiber pump. The component that contacts the medium is using the phenolicglass fiber plastic component made of polyvinyl acetal modified phenolic glassfiber material and pressed from mould under high temperature. The product hasthe advantages of light, strong, ametabolic, heat resistant and corrosionresistant. On the aspect of corrosion resistant, it can replace the expensivemetal like: titanium, titanium alloy and molybdenumrous stainless steel.

Specifications:

1. Flow rate up to 110 m3/h
2. Delivery head up to 30.5 m
3. Power up to 15.0 kw 2900r/min
Volt=380V/50HZ
Three-phase power supply if request.
Single-phase power supply if request.
4. Suitable Medium:hydrochloric acid,Sulfuric acid,Aceticacid,Formic acid etc.
5. Mechanical Seal

Materials:

Casing:Glass Fiber ReinforcedPolymer(FRP)
Impeller:Glass Fiber Reinforced Polymer(FRP)

Technical Parameters:

S Type:

Model No.	Capacity m3/h	Head m	Speed r/min	Eff.	(NPSH)r m	Power KW
S25*25-12.5	3.2	12.5	2900	41	3	0.55/0.75
S40*32-20	6.3	20	2900	50	3	1.1/1.5
S40*32-32	6.3	32	2900	45	3	2.2/3
S50*40-20	12.5	20	2900	53	3	2.2/3
S50*32-32	12.5	32	2900	51	3	4.0/5.5
