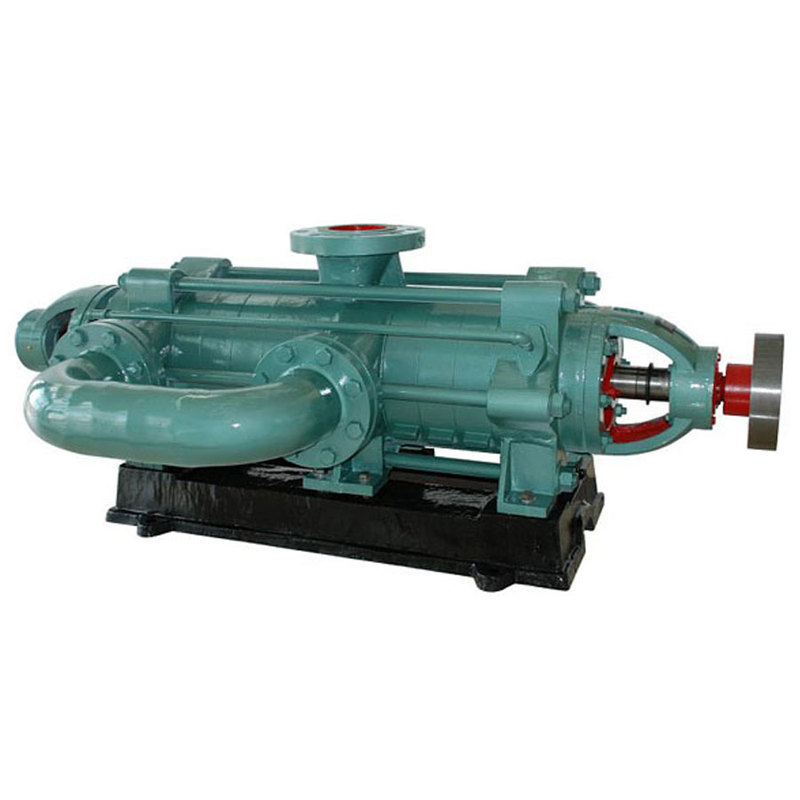

Working Principle:

Centrifugal,   Multistage

Main applications:

Water

Driver:

Electric motor

Power Specs:

220/380/415V/6KV   3phase;50hz/60hz

Max.allowed fluid   temperature:

600C

Type of connection:

Flange

Installation position:

Horizontal

Casing

Cast iron, Stainless   steel

Shaft seal type:

Mechanical seal;   Packing gland

Free passage:

1/4 impeller channel

Maximum drive rating:

4500Kw

Maximum caliber:

1250mm

Maximum discharge-side   pressure:

10.5MPa(105bar)

Maximum head:

1056m(3463.7ft)

Flow rate range:

3.75-1350m3/h

Model

Capacity

m3/h

Head

m

Motor Model

Power
kw

ZD6-25×3

6.3

75

Y132S1-2

5.5

×4

100

Y132S2-2

7.5

×5

125

Y132S2-2

7.5

×6

150

Y160M1-2

11

×7

175

Y160M1-2

11

×8

200

Y160M2-2

15

×9

225

Y160M2-2

15

×10

250

Y160L-2

18.5

×11

275

Y160L-2

18.5

×12

300

Y160L-2

18.5

ZD85-67×3

85

201

Y280M-2

90

×4

268

Y315S-2

110

×5

335

Y315L1-2

160

×6

402

Y315L1-2

160

×7

469

Y315L2-2

200

×8

536

Y355M1-2

220

×9

603

Y355M2-2

250

ZD155-67×3

155

201

Y315M-2

132

×4

268

Y315L2-2

200

×5

335

Y355M1-2

220

×6

402

Y355L1-2

280

×7

469

Y355L2-2

315

×8

536

Y3555-2 6KV

355

×9

603

Y4001-2 6KV

450

200ZD43×2

288

86

Y315S-4

110

×3

122.4

Y315L1-4

160

×4

163.2

Y355M1-4

220

×5

204

Y355L1-4

280

×6

244.8

Y355L1-4

280

×7

285.6

Y4001-4 6KV

355

×8

326.4

Y4002-4 6KV

400

×9

367.2

Y4003-4 6KV

450

The other pumps’ model please contact us freely.

1100ZMD

1100m3/h

850.0

Y2-710-4-4 6KV

4500
