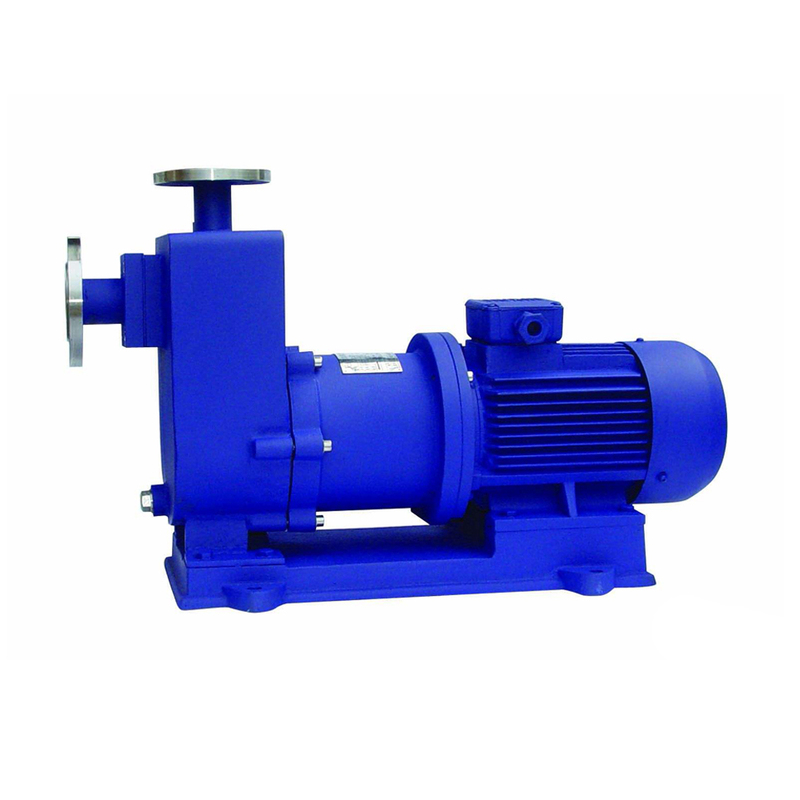

Self-priming Magnetic Pump

Details

Specification

1. Introduction:

1. Zhejiang Jushi Pump Co.,Ltd manufacture magnet drive non-leakingself priming monoblock pump stainless steel chemistry aqua pump is full sealed,non-leakage and corrosion resistant.

2. This magnetic pump is compact instructure, with small volume, good corrosion resistance ability, low noise,reliable running performance and easy to maintain.

3. It is completely eliminate of thegeneral drive shaft seal centrifugal pumps’ problem of running, running,dripping, leaking phenomenon.

4. To deliver acid, lye, oils, rare& precious liquid, venom, volatile liquid or works in circulating fluidequipment. Even wonderful to pump the liquid that is inflammable, explosive orvolatile.

2. Product details:

Working Principle:	Centrifugal, Magnetic, Self priming
Main applications:	Chemical, water, oil
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 50hz/60hz
Max.permissible fluid temperature:	100°C(212°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Stainless steel/Stainless steel
Shaft seal type:	Static sealing
Suction ablity	3min/4m(3min/9.8ft )
Maximum drive rating:	75KW(100HP)
Maximum caliber:	100mm(4inch)
Maximum discharge-side pressure:	0.86MPa(8.6bar)
Maximum head:	86m(282.1ft)
Flow rate range:	1-120m3/h(4.4-528US.GPM)

3. Performance data:

Model	Capacity	Head	Speed	Shaft P	EFF.	Suction ablity	Motor P(KW)
							Medium density(g/cm3)
	(m3/h)	(m)	(r/min)	(KW)	(%)	(m3/min)	<1	<1.3	<1.84
ZCQ25-20-115	1	17	2900	0.23	20	4	0.75	0.75	0.75
	1.6	15		0.24	27
	2	12.5		0.24	28
ZCQ32-25-115	1.9	17	2900	0.4	22	4	0.75	0.75	1.1
	3.2	15		0.45	29
	3.8	12.5		0.43	30
ZCQ32-25-145	1.9	27.5	2900	0.68	21	4	1.1	1.1	1.5
	3.2	25		0.78	28
	3.8	22		0.79	29
ZCQ40-32-132	3.8	25	2900	0.99	26	4	1.1	1.5	2.2
	6.3	22		1.11	34
	7.5	19		1.11	35
ZCQ40-32-160	3.8	34	2900	1.41	25	4	2.2	2.2	3
	6.3	32		1.57	35
	7.5	29		1.65	36
ZCQ50-32-125	7.5	22	2900	1.55	29	4	2.2	3	4
	12.5	20		1.7	40
	15	18		1.79	41
ZCQ50-32-160	7.5	34	2900	2.57	27	4	3	4	5.5
	12.5	32		2.87	38
	15	29		3.04	39
ZCQ50-32-200	7.5	52.5	2900	5.1	21	4	7.5	7.5	11
	12.5	50		5.67	30
	15	48		6.33	31
ZCQ65-50-125	15	22	2900	2.81	32	4	4	5.5	7.5
	25	20		3.17	43
	30	18		3.34	44
ZCQ65-50-160	15	34	2900	4.63	30	4	5.5	7.5	11
	25	32		5.31	41
	30	28		5.45	42
ZCQ65-40-200	7.5	53	2900	8.33	26	4	11	15	18.5
	12.5	50		9.73	35
	15	47		10.67	36
ZCQ80-65-125	30	22	2900	4.73	38	4	5.5	7.5	11
	50	20		5.56	49
	60	18		5.39	50
ZCQ80-65-160	30	34	2900	8.29	33	4	11	15	18.5
	50	32		9.68	45
	60	28		9.95	46
ZCQ80-50-200	30	53	2900	12.37	35	4	18.5	22	30
	50	50		14.8	46
	60	47		16.34	47
ZCQ80-50-250	30	84	2900	21.45	32	4	30	37	45
	50	80		24.76	44
	60	75		27.23	45
ZCQ100-80-160	60	33.5	2900	12.16	45	4	18.5	22	30
	100	32		16.14	54
	120	27		16.04	55
ZCQ100-65-200	60	54	2900	22.62	39	4	30	37	45
	100	50		27.23	50
	120	47		30.12	51
ZCQ100-65-250	60	86	2900	39.03	36	4	45	55	75
	100	80		46.35	47
	120	74.5		50.72	48
