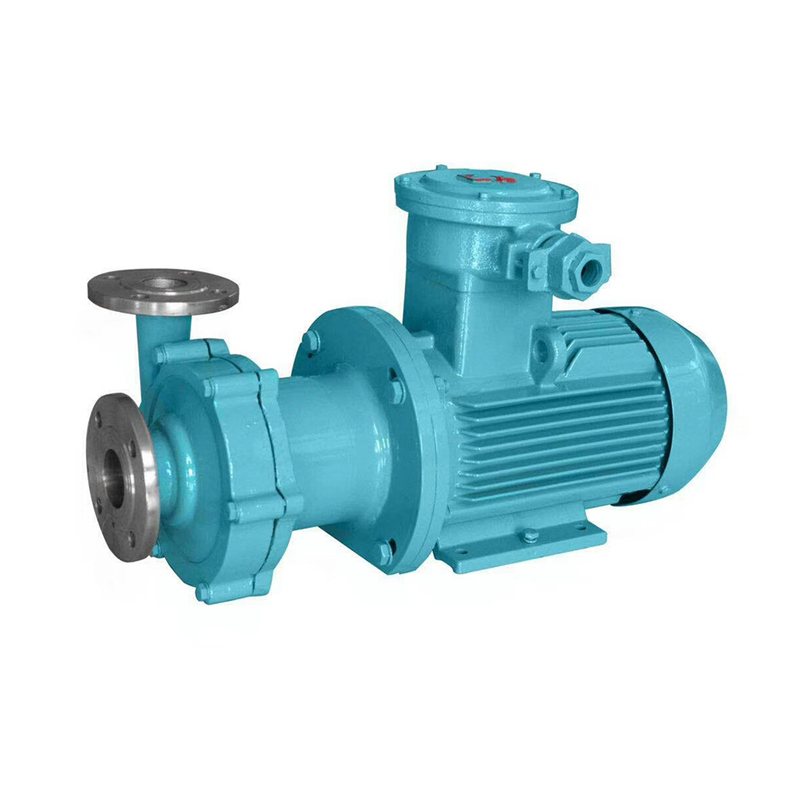

JCQ nonleakage chemical magnetic pump

JCQ nonleakage chemical magnetic pump

share
  • Details
  • Specification

Introduction:

1.Zhejiang Jushi Pump Co.,Ltd manufacture JCQ nonleakage chemical magnetic pump explosion proof transfer acid pump is made of high quality stainless steel material.

2. The transfer acid pump is withmany merits of compact structure, small volume, non-leakage, good corrosionresistance ability, low noise, reliable running and easy to maintain.

3. The chemical magnetic pump could beused to transfer acid, caustic soda, lye, liquor, oil, rare and precious,venom, volatile liquid or work as the unit marching circulating water equipmentand filter separator.

4. Widely used in chemical industry,pharmacy, petroleum, electro facing industry, food industry, film and photoprocessing, scientific research institution and national defense industry.

Product details:

Working Principle:

Centrifugal, Magnetic

Main applications:

Chemical, water, oil

Driver:

Electric motor

Power Specs:

380/415 V 3phase; 220/240 V 1phase; 50hz/60hz

Max.permissible fluid temperature:

80°C(203°F)

Type of connection:

Flange

Installation position:

Horizontal

Casing/Inner parts material:

Stainless steel/Stainless steel

Shaft seal type:

Static sealing

Free passage:

0 mm

Maximum drive rating:

30KW(40HP)

Maximum caliber:

150mm(6inch)

Maximum discharge-side pressure:

0.5MPa(5bar)

Maximum head:

50m(164ft)

Flow rate range:

20-3350L/min(45.3-884.4 US.GPM)

Performance data:

Model

Inlet

Outlet

Head

Capacity

Power

Speed

Voltage

stainless   steel

(mm)

(mm)

(m)

(L/min)

(KW)

(r/min)

(Phase)

14JCQ-5

14

10

5

20

0.18

2800

1ph/3ph

16JCQ-8

16

12

8

30

0.18

2800

1ph/3ph

20JCQ-12

20

12

12

50

0.37

2800

1ph/3ph

25JCQ-15

25

20

15

110

1.1

2800

3phase

32JCQ-15

32

25

15

110

1.1

2800

3phase

32JCQ-25

32

25

25

90

1.1

2800

3phase

40JCQ-20

40

32

20

180

2.2

2800

3phase

40JCQ-32

40

32

32

200

4

2800

3phase

50JCQ-25

50

40

25

240

4

2800

3phase

50JCQ-32

50

40

32

220

4

2800

3phase

50JCQ-50

50

32

50

130

5.5

2800

3phase

65JCQ-25

65

50

25

280

5.5

2800

3phase

65JCQ-32

65

50

32

450

5.5/7.5

2800

3phase

80JCQ-32

80

65

32

850

11

2800

3phase

80JCQ-50

80

65

50

850

15

2800

3phase

100JCQ-35

100

80

35

1000

15

2800

3phase

100JCQ-50

100

80

50

1000

18.5

2800

3phase

125JCQ-32

125

100

32

1700

22

2800

3phase

125JCQ-32

125

100

32

2500

30

1450

3phase

150JCQ-25

150

125

25

3350

30

1450

3phase



Type
Centrifugal Pump
Flow
20-3350L/Min
Head
5-50m
Power
0.18-30Kw
Material
Cast Iron, Stainless steel
Brand
JUSHI
Application
chemical industry, pharmacy, petroleum, electro facing industry, food industry, film and photo processing, scientific research institution and national defense industry
