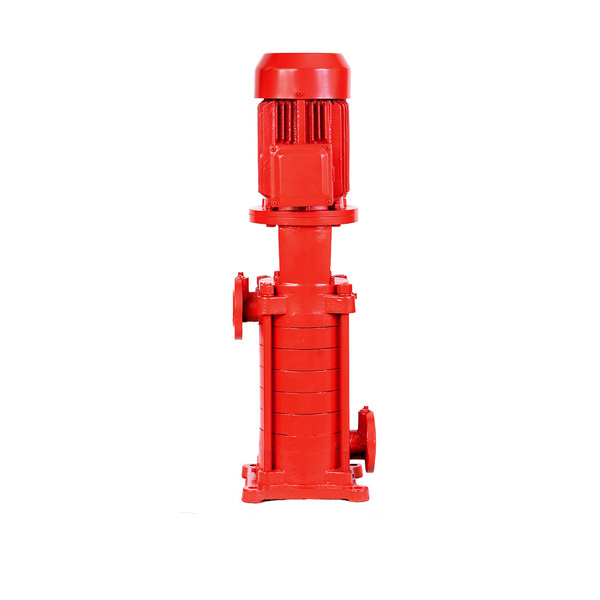

Jushi DL Vertical Multistage Pump

Jushi DL Vertical Multistage Pump

share
  • Details
  • Specification

Introduction:

1.Zhejiang Jushi Pump Co.,Ltd manufacture DLmultistage centrifugal water pump vertical high head water pump has theadvantages of advanced designing, compact structure, energy conversation, smallfloor space, easy installation, stable performance, etc.

2. Thehigh head water pump always be used to supply water for high building,fire fighting system, central heating system, etc.

3.Multistage pump is with higher head (discharge pressure) than regular singlestage one.

4.Widely used in water supply or drainage of high-rise building, firecontrol system, heating system, air-conditioning system, hotels, supermaket,office building, factories, industries and mining enterprises, municipalengineering, spray system, boilers, chemcial industry, etc.

Productdetails:

Working Principle:

Centrifugal, Multi-stage

Main applications:

Water

Driver:

Electric motor

Power Specs:

220/380/415V 3phase, 110/220/240v 1phase; 50hz/60hz

Max.permissible fluid temperature:

80°C(176°F)

Type of connection:

Flange

Installation position:

Vertical

Casing material:

Cast iron

Shaft seal type:

Mechanical seal

Free passage:

0.1 mm

Maximum drive rating:

200KW(270HP)

Maximum caliber:

200mm(8inch)

Maximum discharge-side pressure:

2.5MPa(25bar)

Maximum head:

250m(820ft)

Flow rate range:

6-300m3/h(26.4-1320US.GPM)

Performancedata:

Model

Stage

Diameter

Capacity

Head

Power

Speed

(NPSH)r

(mm)

(m3/h)

(m)

(KW)

(r/min)

(m)

40DL 6-12

2

40

6

24

1.5

1480

3.2

DLR

3

36

2.2


4

48

3


5

60

4


6

72

4


7

84

5.5


8

96

5.5


9

108

7.5


10

120

7.5


11

132

7.5


12

144

11

50DL 12.5-12.5

2

50

12.5

25

3

1480

2.2

DLR

3

37.5

3


4

50

4


5

62.5

5.5


6

75

7.5


7

87.5

7.5


8

100

7.5


9

112.5

11


10

125

11

… ...

200DL 300-20

2

200

300

40

55

1480

5

DLR

3

60

75


4

80

110


5

100

132


6

120

160


7

140

160


8

160

200



Type
Centrifugal Pump
Flow
6-300m3/g
Head
24-160m
Power
1.5-200Kw
Material
Cast Iron
Brand
JUSHI
Application
water supply or drainage of high-rise building, fire control system, heating system, air-conditioning system, hotels, supermaket, office building, factories, industries and mining enterprises, munici
