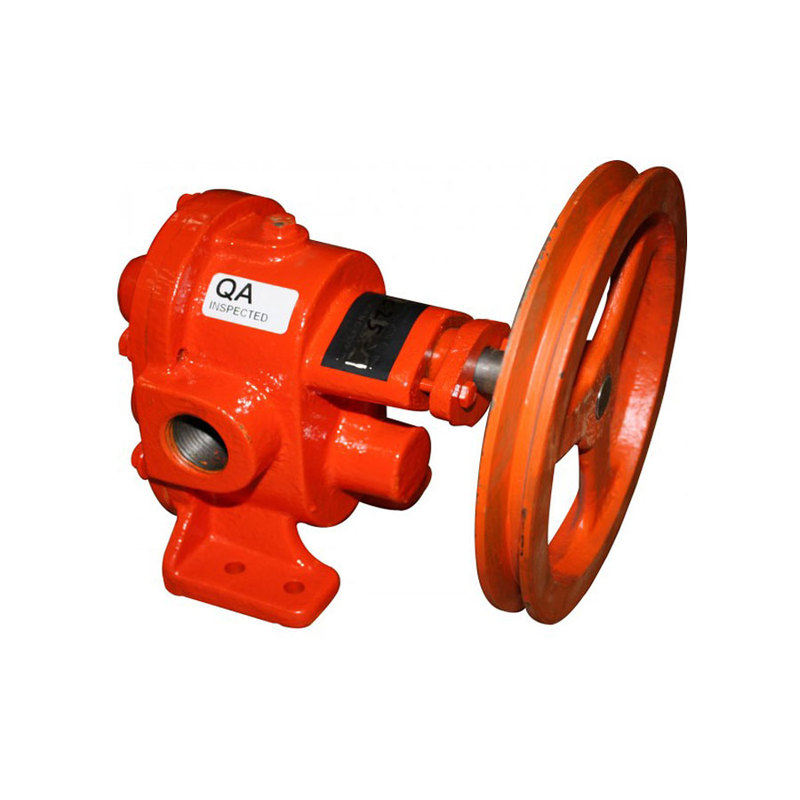

Johames BP Belt Pulley Gear Pump
Johames BP Belt Pulley Gear Pump
- Details
- Specification
Summarize:
1. Wenzhou Johames Technology Co.,Ltd manufacture BP Belt Pulley Gear Pump.
2. The belt pulley can protect pump from overloading in working and issuitable for the delivery of wide center-to-center distance.
3. The belt pulley driven gear pump could be used to transfer oil or equivalent lubricating fluid without solids and fiber.The stainless steelpump also could transfer chemical liquid, and the one with bronze gear isdesigned for low flash point oil, such as gasoline specifications.
4. By adopting belt pulley drive, the speed of pump could be adjusted low. It could be used for highviscosity medium. And the stainless steel pump also could transfer chemicalliquid.
5. To the differect clients' demand, we design it into two material: GC type and BP type.
C type is made of cast iron, using to transit water, kerosene, white oil, heacyoil and machine oil etc.
Btype is adopt barss gear, using to pump sea water, brine, weak acid and otherchemistry liquid.
Product details:
Working Principle: | Double Gears |
Main applications: | Oil |
Driver: | Electric motor, diesel engine. |
Power Specs: | 220/380/415V 3phase; 110/220/240V 1phase;50hz/60hz,etc |
Max. permissible fluid temperature: | 70 C(158F) |
Type of connection: | Thread |
Installation position: | Horizontal |
Casing parts material: | Cast iron, Stainless Steel |
Shaft seal type: | Shaft seal ring |
Free passage: | 00 mm |
Maximum viscosity: | 1.5X103C.S.T |
Maximum drive rating: | 5.5 kW(7.5HP) |
Maximum caliber: | 80mm(3inch) |
Maximum discharge-side pressure: | 0.3MPa(3bar) |
Maximum suction: | 3m(9.8ft) |
Flow rate range: | 16-320L/min(4.2-84.5US.GPM) |
Performance Data:
Model | Type | Inlet/Outlet | Speed | Capacity | Pressure | NPSH | Power | Weight |
BPC-13 | BPC:
BPB: | 13mm | 400 | 21 | 0.3 | 3 | 0.25 | 4.3 |
BPC-20 | 20mm | 400 | 37 | 0.3 | 3 | 0.55 | 7.1 | |
BPC-25 | 25mm | 400 | 55 | 0.3 | 3 | 0.75 | 11.0 | |
BPC-35 | 35mm | 400 | 121 | 0.3 | 3 | 1.5 | 21.0 | |
BPC-50 | 50mm | 400 | 242 | 0.3 | 3 | 3 | 42.0 | |
BPC-80 | 80mm | 400 | 455 | 0.3 | 3 | 5.5 | 77.2 |
Model | GC-13 | GC-20 | GC-25 | GC-40 | GC-50 | GC-80 |
Inlet/Outlet (inch) | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 3 |
Capacity (L/m) | 21 | 37 | 55 | 121 | 242 | 455 |
Head (m) | 10 | 10 | 15 | 15 | 15 | 15 |
Speed (rpm) | 400rpm | |||||
Power (kw) | 0.2 | 0.4 | 0.75 | 1.5 | 3 | 5.5 |
Weight (kg) | 4 | 6 | 11 | 35 | 45 | 82 |
Material | Cast iron | |||||
