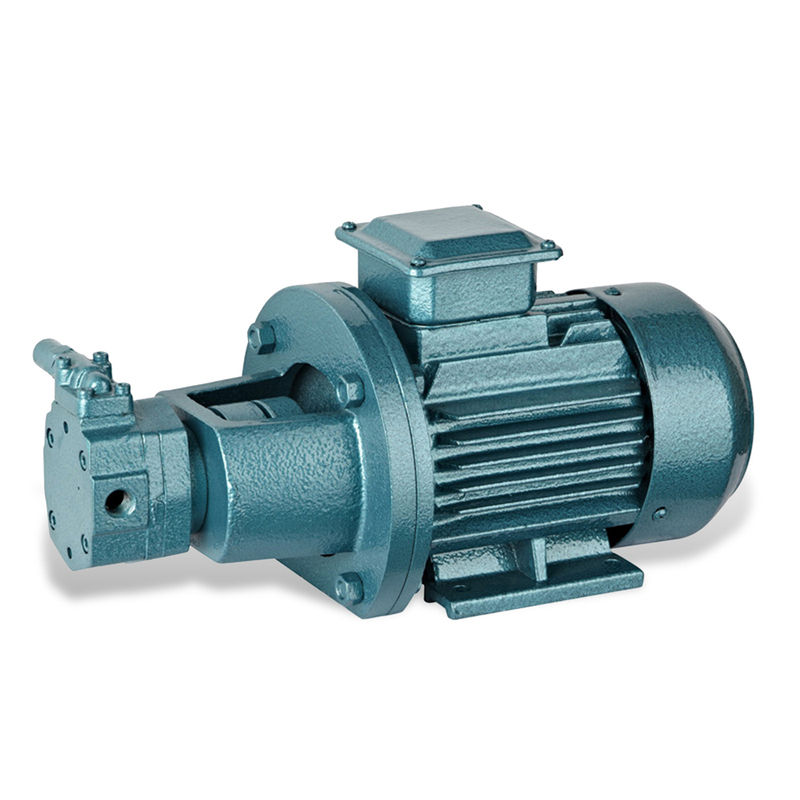

Johames BBG Hydraulic Gear Pump
Johames BBG Hydraulic Gear Pump
- Details
- Specification
Introduction:
1. Zhejiang Johames Technology Co.,Ltd manufacture Cast iron small gear oil pump isa common hydraulic gear pump used in low pressure hydraulic system.
2. It can convert mechanical energy ofthe electric motor into hydraulic energy by a pair of meshing gears.
3. The gear oil pump applies to transferpure neutral oil with viscosity range of 1~8 °E from a container to another,servicing oil like engine oil, kerosene, diesel and lots of vegetable oil.
4. Widely used in hydraulic system,hydraulic machinery and engineering machinery, also for oil transportation forcommerce, manufacture, agriculture and other industries.
Product details:
Working Principle: | Internal gears |
Main applications: | Oil |
Driver: | Electric motor |
Power Specs: | 380/415 V 3phase;220/240V 1phase;50hz/60hz |
Max. permissible fluid temperature: | 100°C(392°F) |
Type of connection: | Thread |
Installation position: | Horizontal |
Casing/Inner parts material: | Cast iron/Cast iron |
Shaft seal type: | Shaft seal ring |
Free passage: | 0 mm |
Maximum viscosity: | 300C.S.T |
Maximum drive rating: | 2.2kW |
Maximum caliber: | 32mm(1 1/4inch) |
CB-B Maximum discharge-side pressure: | 0.15MPa(1.5bar) |
S type head | 15m(49.2ft) |
Flow rate range: | 10-125L/min |
TechnicalData:
Model | Capacity l/min | Pressre bar | Speed r/min | Diameter inch | Motor Power kw/r |
BB/BBG-4 | 4 | 24.5 | 1500 | Z3/8" | 0.55/1450 |
BB/BBG-6 | 6 | ||||
BB/BBG-10 | 10 | ||||
BB/BBG-16 | 16 | Z3/4" | 1.1/1450 | ||
BB/BBG-20 | 20 | ||||
BB/BBG-25 | 25 | 1.5/1450 | |||
BB/BBG-32 | 32 | ||||
BB/BBG-40 | 40 | 2.2/1450 | |||
BB/BBG-50 | 50 | 3/1450 | |||
BB/BBG-63 | 63 | 4/1450 | |||
BB/BBG-80 | 80 | Z1" | 5.5/1450 | ||
BB/BBG-100 | 100 | ||||
BB/BBG-125 | 125 | 7.5/1450 |
