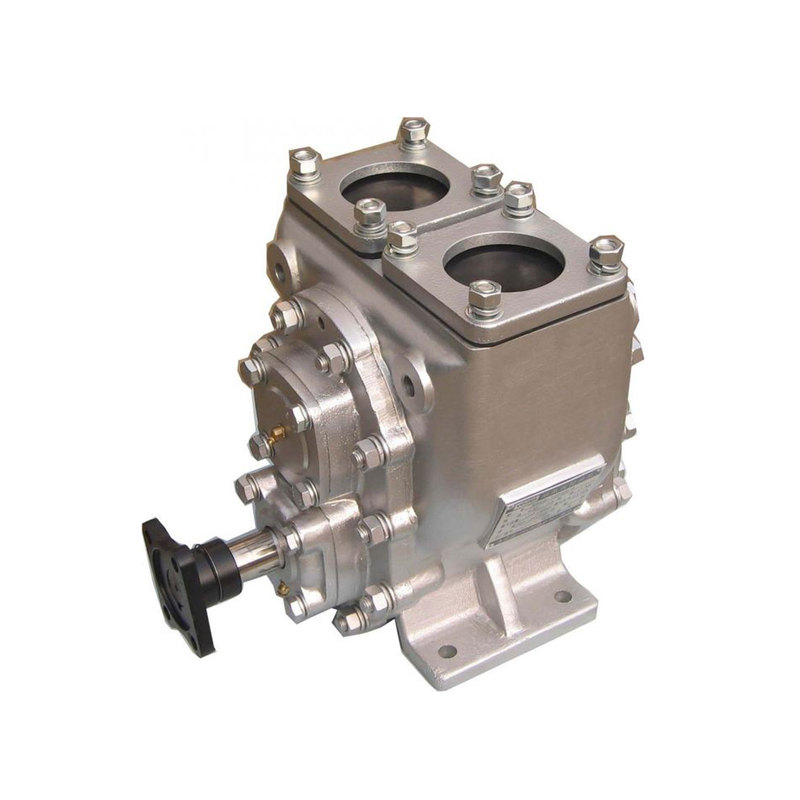

Johames Arc Gear Pump
Johames Arc Gear Pump
- Details
- Specification
Introduction:
1. Wenzhou Johames Technology Co.,Ltd manufacture arc gear pump electric lube oiltransfer pump is made up of double circular tooth gears.
2. The lube oil transfer pump is withmerits of large flowrate, high head of delivery, low noise, low input speed,strong self-priming ability, easier installation and maintenance.
3. The arc gear pump is suit totransfer the liquid that is non-corrosive and without solid particle, suchas oil, diesel, etc.
4. The electric oil pump is anideal selection for tank car modification industry and the oil sector.
Product details:
Working Principle: | Double Gears |
Main applications: | Oil |
Driver: | Electric motor, diesel engine. |
Power Specs: | 220/380/415V 3phase; 50hz/60hz |
Max. permissible fluid temperature: | 80°C(176°F) |
Type of connection: | Flange, Thread |
Installation position: | Horizontal |
Casing/Inner parts material: | Cast iron, Stainless Steel |
Shaft seal type: | Shaft seal ring; Mechanical seal |
Free passage: | 00 mm |
Maximum viscosity: | 1.5X103C.S.T |
Maximum drive rating: | 45KW(60HP) |
Maximum caliber: | 200mm(8inch) |
Maximum discharge-side pressure: | 0.6MPa(6bar) |
Flow rate range: | 15-200 m3/h (66-880US.GPM) |
Performance data:
Model | Capacity | Pressure | Speed | Efficiency | Suction | Motor | |
(m3/h) | (MPa) | (r/min) | (%) | (m) | Power | Model | |
(KW) | |||||||
50YHCB-15 | 15 | 0.6 | 960 | 70 | 5 | 3 | YB132S-6 |
50YHCB-20 | 20 | 0.2 | 1100 | 70 | 5 | 3 | YB132S-6 |
65YHCB-30B | 30 | 0.4 | 970 | 70 | 5 | 5.5 | YB132M2-6 |
65YHCB-35 | 35 | 0.6 | 1440 | 70 | 5 | 7.5 | YB132M-4 |
65YHCB-35A | 35 | 0.6 | 960 | 70 | 5 | 7.5 | YB160M-6 |
76YHCB-40 | 40 | 0.6 | 1440 | 70 | 5 | 7.5 | YB132M-4 |
76YHCB-40A | 40 | 0.6 | 970 | 70 | 5 | 7.5 | YB160M-6 |
76YHCB-40B | 40 | 0.4 | 970 | 70 | 5 | 7.5 | YB160M-6 |
76YHCB-50 | 50 | 0.6 | 970 | 70 | 5 | 11 | YB160L-6 |
80YHCB-60 | 60 | 0.6 | 970 | 70 | 5 | 11 | YB160L-6 |
80YHCB-60A | 60 | 0.6 | 970 | 70 | 5 | 11 | YB160L-6 |
80YHCB-60B | 60 | 0.4 | 970 | 70 | 5 | 11 | YB160L-6 |
80YHCB-80 | 80 | 0.6 | 970 | 70 | 5 | 15 | YB180L-6 |
100YHCB-100 | 100 | 0.4 | 970 | 70 | 5 | 18.5 | YB200L1-6 |
150YHCB-150 | 150 | 0.4 | 980 | 70 | 5 | 30 | YB225M-6 |
200YHCB-200 | 200 | 0.4 | 740 | 70 | 5 | 45 | YB280M-6 |
