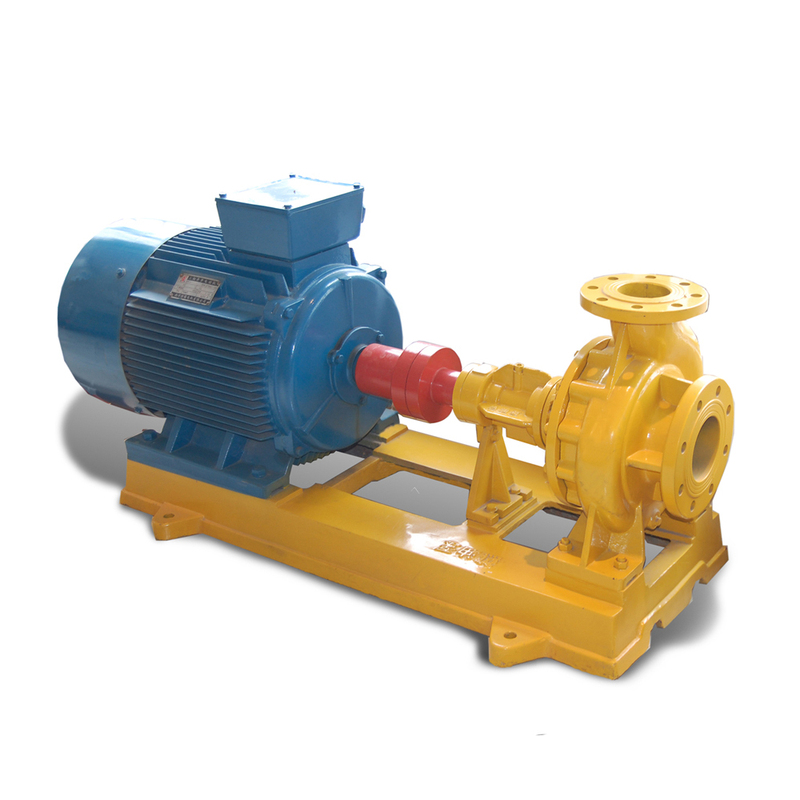

Johames LQRY Hot Oil Pump
Johames LQRY Hot Oil Pump
- Details
- Specification
Summarize:
1.Wenzhou Johames Technology Co.,Ltd Manufacture Hot Oil Pump Priceis suitable for heat-conduction oil, or other hot oils with temperature≤370°C
2.It has a reasonablestructure, advanced technology, high efficiency, long-term stableoperation without leakage in the hot state. Used to transport notcontaining solid particles of corrosion high temperature liquid withsystem of directly wind cooling.
3.It's widely used inpetroleum oil, chemical industry, rubber, leather, food industry, grease,boilers, construction, road maintenance, pharmaceutical, plastics, rubber,synthetic fiber textile, printing and dyeing and other industrial fields.
Seal Type:
1.Using the combinationin the form of the packing seal and the mechanical seal, packing with hightemperature resistant filler material, has a good thermal adaptability.
2.The mechanicalseal: a high mechanical strength, good abrasion carbide material,guarantee the sealing performance under high temperature conditions.
3.Polytetrafluoroethylene(PTFE) do lip seal, the sealing performance leap than the rubber sealingreliability increased by 25 times, highly corrosion-resistant.
Product details:
Working Principle: | Centrifugal |
Main applications: | Hot oil, thermal oil, high temperature oil, etc |
Driver: | Electric motor, diesel |
Power Specs: | 220/380/400/415V 3phase;50hz/60hz |
Max.permissible fluid temperature: | 370°C (698°F) |
Type of connection: | Flange |
Installation position: | Horizontal |
Casing parts material: | Cast steel |
Shaft seal type: | Shaft seal ring, Mechanical seal, Carbon seal |
Free passage: | 1mm |
Maximum viscosity: | 5X104C.S.T |
Maximum drive rating: | 132KW (180HP) |
Maximum caliber: | 150mm (6inch) |
Maximum discharge-side pressure: | 0.85Mpa (8.5bar) |
Maximum head: | 85m (278.8ft) |
Flow rate range: | 4.5-400m³/h(19.8-1760US.GPM) |
Performance Data:
Model | Capacity (m3/h) | Head (m) | Speed (r/min) | Shaft Power (kw) | Motor Power (kw) |
26-20-100 | 4.5 | 15 | 2825 | 0.45 | 0.75 |
50-32-150 | 8 | 22 | 2900 | 1 | 1.5 |
50-32-160 | 10 | 25 | 2900 | 1.5 | 2.2 |
65-40-160 | 12.5 | 25 | 2900 | 2.5 | 3 |
50-50-170 | 12.5 | 32 | 2900 | 3.2 | 4 |
65-50-180 | 32 | 32 | 2900 | 4.5 | 5.5 |
65-50-170 | 40 | 25 | 2900 | 4.5 | 5.5 |
80-50-180 | 40 | 40 | 2900 | 6.7 | 7.5 |
80-50-170 | 60 | 20 | 2900 | 6.7 | 7.5 |
100-65-190 | 60 | 38 | 2930 | 9.2 | 11 |
100-65-200 | 80 | 40 | 2930 | 12.5 | 15 |
100-65-220 | 58 | 50 | 2930 | 12.5 | 15 |
100-65-230 | 100 | 55 | 2940 | 19.5 | 22 |
125-100-190 | 155 | 30 | 2940 | 20 | 22 |
100-65-240 | 100 | 70 | 2950 | 25.5 | 30 |
100-65-257 | 100 | 80 | 2950 | 32.5 | 37 |
125-100-220 | 160 | 45 | 2950 | 25.5 | 37 |
125-80-250 | 160 | 60 | 2970 | 35.5 | 45 |
125-100-257 | 200 | 60 | 2970 | 42.8 | 55 |
125-100-260 | 260 | 70 | 2970 | 64.3 | 75 |
