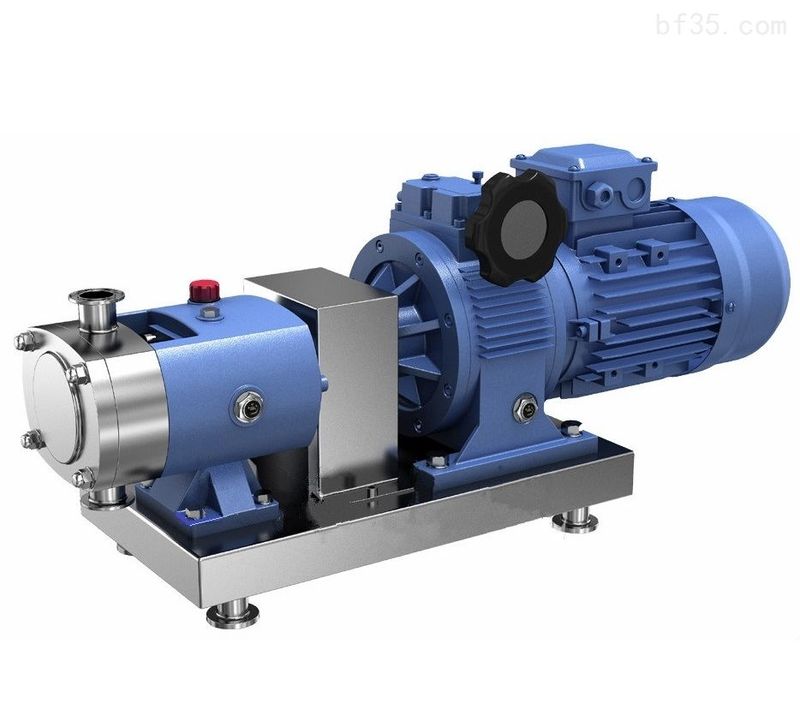

Johames D-3A Lobe Pump
Johames D-3A Lobe Pump
- Details
- Specification
Introduction:
1. Wenzhou Johames Technology Co.,Ltd manufacture D3A stainless steel cam lobe flex pump high viscosityadjustable speed sanitary lobe pump is special designed for liquid sugar,vegetable oil, edible oil, molasses, chocolate, cooking oil, paste, milk,fruit, etc.
2. The dependable rust protection and the non-toxic sealing ofthe pump ensure the safety and the sanitary standard.
3. Apply to the transfer of the mediums that areeasy-foaming/high viscosity/high concentration/with solid and protect them fromphysico chemical reaction & remain the same.
4. Low rotational speed prevent the change of existing quality,physics and chemistry properties.
5. Three motor type: CVT Stepless variable speedmotor, Fixed ratio gear-box motors, Frequency conversion variablespeed motor. It can configured with insulation jacket, Water coolingdevice, Trolley.
Product details:
Working Principle: | Double rotors |
Main applications: | Oil, food, colloid |
Driver: | Electric motor |
Power Specs: | 220V,240V,380V,400V,415V,440V 50hz/60hz |
Max.permissible fluid temperature: | 100°C(212°F) / 200°C(392°F)-water cool type |
Type of connection: | Quick clamp, Flange, Thread, SMS, Barb, Square port |
Position of inlet/outlet: | Horizontal or Vertical |
Casing/Inner parts material: | SS304, SS316L |
Shaft seal type: | Mechanical seal |
Maximum viscosity: | 1×106 C.S.T |
Maximum drive rating: | 30kW(40HP) |
Maximum caliber: | 125mm(5inch) |
Maximum discharge-side pressure: | 1.6MPa(16bar) |
Suction pressure | 0.08Mpa(0.8bar) |
Flow rate range: | 0.3-72m3/h(1.3-316.8US.GPM) |
Product details:
Working Principle: | Double rotors |
Main Applications: | Food applications, Polymers, Paper coatings, Soaps and surfactants, Paints and dyes Rubber and adhesives, Pharmaceuticals |
Driver: | Variable Speed Motor, Geared Motor, Variable Frequency Motor |
Power Specs: | 220V, 240V, 380V, 400V, 415V, 440V, 460V, 50hz/60hz |
Max.permissible fluid temperature: | 150°C (302°F) / 250°C (482°F)-water cool type |
Type of connection: | Quick couple, Thread, Flange |
Installation position: | Horizontal |
Casing/Inner parts material: | Stainless Steel |
Shaft seal type: | Mechanical seal |
Maximum viscosity: | 1x106 C.S.T |
Maximum drive rating: | 22kW(30HP) |
Maximum caliber: | 125mm(5inch) |
Maximum discharge-side pressure: | 5bar |
Suction pressure: | 0.08Mpa(0.8bar) |
Flow rate range: | 0.3-72m3/h(1.3-316.8US.GPM) |
Performance data:
Type | Size (mm) | Discharge Capacity per 100r (L) | Speed Range (rpm) | Flow (L/H) | Motor Power (kW) | |
LQ3A-6 | 25 | 6 | 200-500 | 650-1600 | 0.75 | |
LQ3A-8 | 32 | 8 | 200-500 | 850-2160 | 1.5 | |
LQ3A-12 | 38 | 12 | 200-500 | 1300-3200 | 2.2 | |
LQ3A-20 | 38 | 20 | 200-500 | 2100-5400 | 3 | |
LQ3A-30 | 42 | 30 | 200-400 | 3200-6400 | 4 | |
LQ3A-36 | 42 | 36 | 200-400 | 3800-7600 | 5.5 | |
LQ3A-52 | 50 | 52 | 200-400 | 5600-11000 | 5.5 | |
LQ3A-66 | 62 | 66 | 200-400 | 7100-14000 | 7.5 | |
LQ3A-78 | 75 | 78 | 200-400 | 9000-18000 | 7.5 | |
LQ3A-100 | 75 | 100 | 200-400 | 11000-22000 | 11 | |
LQ3A-135 | 100 | 135 | 200-400 | 15000-30000 | 15 | |
LQ3A-160 | 100 | 160 | 200-400 | 17000-34000 | 18.5 | |
LQ3A-200 | 125 | 200 | 200-400 | 21600-43000 | 22 |
