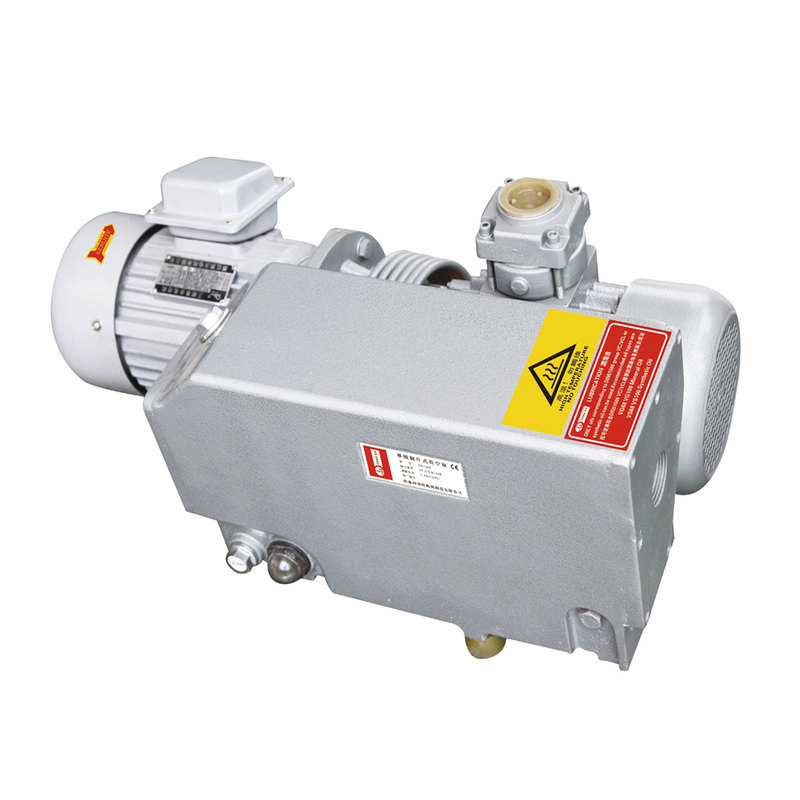

Rotary Vane Vacuum Pump

Details

Specification

Introduction:

1. Zhejiang Jushi Pump Co.,Ltd manufacture cast iron rotary vane type vacuum pump portable 220v lab vacuum pump can be cooled by air

2. This series vacuum pump is tosuck or compress air from or into container.

3. It is applicable for air or any othergas which is non-corrosive, insoluble in water and without solids. Air or gascontains a small amount of liquid is allowed.

4. With oil-return resistant structure,the pump oil is kept from returning to the sucking system.

5. A gasdraining filter fixed in thepump, which operates stable with small vibration can effectively eliminate theoil mist, and can operate under any pressure.

6. The lab vacuum pump is applied toseveral sectors such as food vacuum packing, pharmaceutical, paper, printingmachines, glass, vacuum clamps, industrial conveyor, drying industry and otherunits.

Product details:

Working Principle:	Slices vacuum pump
Main applications:	Air & Gas
Driver:	Electric motor
Power Specs:	220380/415V 3phase; 110/220/240V 1phase; 50hz/60hz
Max.permissible fluid temperature:	50°C(122°F)
Type of connection:	Thread
Installation position:	Horizontal
Casing material:	Cast iron
Shaft seal type:	Mechanical seal, Packing seal
Free passage:	0mm
Limited vacuum:	200pa(2X10-3bar)
Maximum drive rating:	7.5KW(10HP)
Maximum caliber:	50mm(2inch)
Flow rate range:	10-250m3/h(44-1100US.GPM)

Performance data:

Model	XD-010	XD-020	XD-030	XD-040	XD-063	XD-100	XD-160	XD-250
Pumping capacity(m3/h)	10	20	30	40	63	100	160	250
Ultimate vacuum pressure (Pa)	200	200	200	200	200	200	200	200
Motor power(KW)	0.37	0.9(220V)	0.9(220V)	1.1	1.5	3	4	7.5
Motor power(KW)	0.37	0.75(380)	0.75(380V)	1.1	1.5	3	4	7.5
Speed(r/min)	1440	2800	1440	1440	1440	1440	1440	1440
Oil consumption amount(L)	0.5	0.5	1	1.5	2	4	9	9
Voltage(V)	110/220/380	110/220/380	110/220/380	110/220/380	380	380	380	380
Inlet(Inch)	G 1/2	G 1/2"	G 1 1/4"	G 1 1/4"	G 1 1/4"	G 1 1/4"	G 2"	G 2 1/2"
Weight(kg)	16	19	29	65	62	115	200	200
