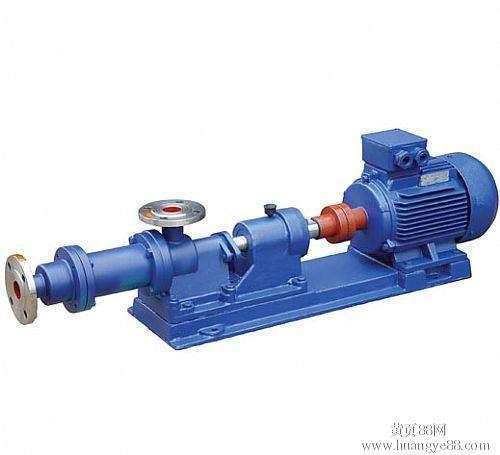

Jushi I-IB Screw Pump

Details

Specification

Introduction:

1. Zhejiang Jushi Pump Co.,Ltd manufacture I-IB CI SS electric mono screw pumphigh viscosity liquid transfer pump is with merits of simple structure, stableworking, good self-priming ability, convenient operation and easy maintenance.

2. The main working parts areeccentric screw (rotor) and static bush (stator) made of metal lined withrubber.

By continuously rotatingof rotor, the cavity between stator and rotor delivers fluid from suction sideto discharge side stablely.

3. The mono screw pump could be used totransfer high visocisity liquids, such as slurry, mud, etc. The stainless steelpump with fluoroplastic stator also could transfer corrosive chemicalslurry.

4. Widely used in chemical plant,production factory, food factory, paper mill, canning factory, pharmaceuticalfactory, etc.

Product details:

Working Principle:	Eccentric Single Screw
Main applications:	Slurry, foodstuff, chemical, etc
Driver:	Electric motor
Power Specs:	220/380/415V 3phase; 110/220/240V 1phase;50hz/60hz
Max.permissible fluid temperature:	100°C(212°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing parts material:	Cast iron, Stainless Steel
Shaft seal type:	Mechanical seal, packing seal
Free passage:	6mm
Maximum viscosity:	1X106C.S.T
Maximum drive rating:	15KW(20HP)
Maximum caliber:	150mm(6inch)
Maximum discharge-side pressure:	1.2MPa(12bar)
Flow rate range:	1.5-24m3/h(6.6-105.6US.GPM)

Performance data:

Model	Diameter	Head	Pressure	Power	Capacity	Suction	Speed
Model	(mm)	(m)	(MPa)	(KW)	(m3/h)	(m)	(r/min)
I- I B1(Inch)	25	50	0.5	1.1	1.5	2	960
I- I B1(Inch)	25	100	1	2.2	1.5	2
I- IB1.5(Inch)	40	80	0.8	2.2	3.2	3
I- IB1.5(Inch)	40	120	1.2	4	3.2	3
I- IB2(Inch)	50	80	0.8	3	5.6	3
I- IB2(Inch)	50	120	1.2	5.5	5.6	3
I- IB2.5(Inch)	65	60	0.6	3	6.5	3
I- IB2.5(Inch)	65	120	1.2	7.5	6.5	3
I- IB3(Inch)	80	60	0.6	5.5	12	3
I- IB3(Inch)	80	120	1.2	11	12	3
I- IB4(Inch)	100	60	0.6	7.5	16	3
I- IB5(Inch)	125	60	0.6	11	19	3
I- IB6(Inch)	150	60	0.6	15	24	3
